Introducing /e/OS Generic System Images (GSI)

An /e/OS Generic System Image (GSI) has been a long standing request from /e/OS users. In this article, we’ll share details about the official /e/OS GSI, which will be released soon.

We assume that the reader has an average knowledge of technical terms, as there are some peppered across this blog post. It would not be possible to explain all the terms and definitions, though we have attempted to keep the narrative as simple as possible.

What is a GSI ?

Before we jump headlong into sharing details on the /e/OS GSI, let us first understand what a GSI or Generic System Image is.

The official definition for a GSI defines it as:

… a system image with adjusted configurations for Android devices. It’s considered a pure Android implementation with unmodified Android Open Source Project (AOSP) code that any Android device running Android 8.1 or higher can run successfully.

In layman terms, it means that a GSI is a slightly modified system image. It is made from the base Android source code. That being said there are considerable differences between a stock ROM and a GSI. Lets look at some of these.

Regarding /e/, a GSI is an easy way for users or developers to test /e/OS on potentially any recent Android smartphone with an unlockable bootloader.

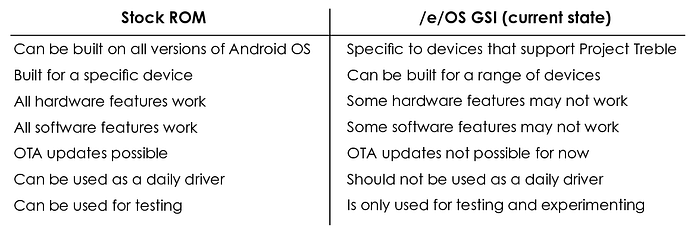

The difference between GSI and Stock ROMs

(Note: These differences are specific to the /e/OS GSI. There might be exceptions on other GSI but that is not in the scope of this article.)

What is Project Treble?

One term that crops up when the subject of GSI is mentioned is Project Treble. Previously whenever a new Android Operating System came along, phone manufacturers had to wait for the chipset vendors like Qualcomm to update the code for the internal hardware. This could take months or even years. By then a new Android Operating System could be available.

To address this problem Google came out with an innovative idea: separate the Operating System code from the device hardware code. This, in a sentence, is the idea behind Project Treble. Now every time an OS update comes along, the device manufacturers do not have to wait for the hardware component code to be upgraded. They are free to push the new Operating System to the end user.

In general we consider devices which came after 2018 and with Oreo or higher as the initial Operating System, are Project Treble- compatible. There could be exceptions to this rule. Let us see what more requirements need to be met.

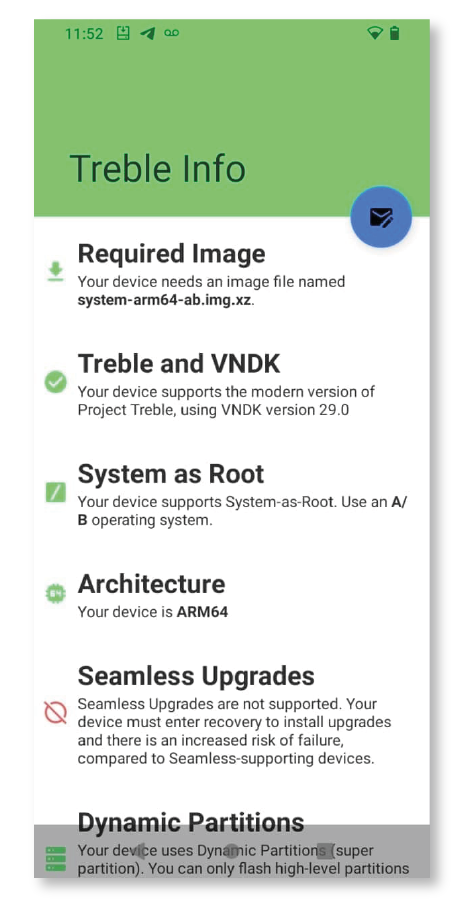

System requirements for a GSI

To be able to install a GSI a device should meet certain requirements.

The device:

The list and variables goes on as technical minds modify and tweak older devices to make them compatible, but we will not go into those details here.

All about /e/’s GSI

Now lets talk about the subject of this article, the /e/OS GSI. To say that we are introducing the /e/OS GSI would be factually incorrect. The /e/ development team had done some preliminary work on this way back in 2019. You may have read this post on the forum. After some initial work on an /e/ GSI we had to stop. The reason behind the pausing of the development, was lack of dedicated resources for the task.

We are pleased to announce that the /e/ team resumed building GSIs, based on the work of PHHusson and AndyCGYan. Thanks to these efforts, we are now releasing the official /e/OS GSI.

What the /e/OS GSI is not

At this point we would again want to remind the readers of the following points:

User checklist before installing a GSI

How to get your hands on an /e/ GSI

We have added the following resources on our documentation site to help you:

Feedback and comments

As always we look forward to your constructive comments and suggestions. You can comment in this thread or share them with us at support@e.email.

For more updates on the project, follow us on Twitter & Mastodon!
